Undet Point Cloud and Undet Browser an example script Line

In Undet Browser toolbar, pressing „Settings“ button open script command setup window (see Figure „Settings screen”).

Settings screen

We enter the script command line „{0}, {1}, {2} ” and press the „Ok“ button.

In Undet Browser program toolbar, press button „Script“ (see Figure „Script button“).

Script button

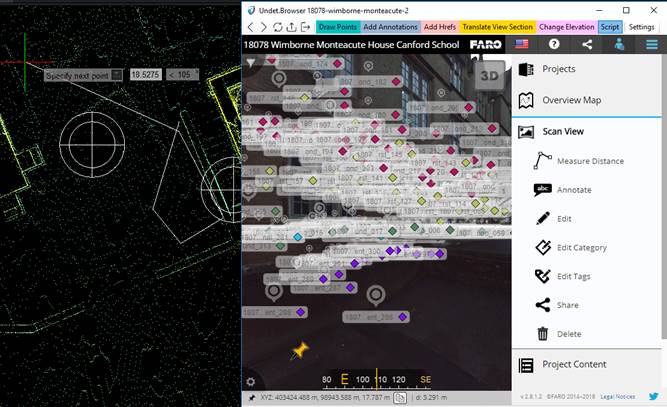

In Undet Point Cloud program we open „Line“ command. After opening the „Line“ command, in Undet Browser, mark the points where you want to draw the line (see Figure „Line drawing example“).

Line drawing example
