Undet Point Cloud and Undet Browser scan view viewsection translate

In Undet Browser program toolbar press button „Translate View Section“ (see Figure. „Translate View Section button “).

Translate View Section button

In program open selected scan view and mark the point (see Figure „Translate View Section point marking “).

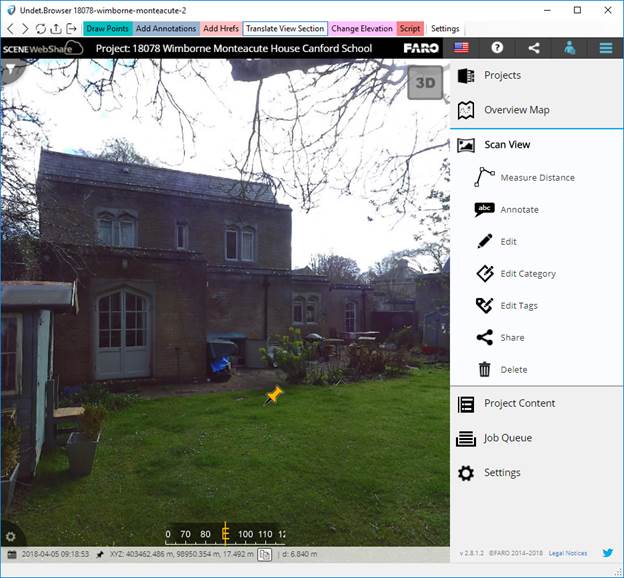

Translate View Section point marking

In Undet Browser scan position, when marking point in Undet Point Cloud, the active viewsection is moved to the selected point.

Pin status:

•          Gray , while the program is loading;

•          Yellow , program has loaded;

•          Red , when marked point is not found;

Note: Active viewsection must be enabled in Undet Point Cloud program.
