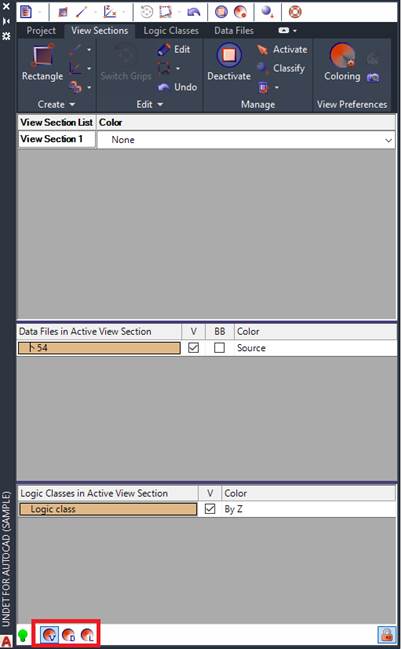

- Sets coloring to Active
View Section. Active Coloring Option is displaying and can be changed in View
Sections List. There are several Coloring Options, that can be used for View
Section coloring:
o None – removes all coloring from Point Cloud Object in Active View Section. All points have the same color, specified in AutoCAD options;
o By Intensity – colors Point Cloud Object in Active View Section by the settings, specified in Coloring Options dialog box, By Intensity tab;
o By Z – colors Point Cloud Object in Active View Section by the settings, specified in Coloring Options dialog box, By Height (Z value) tab;
o By Plane – colors Point Cloud Object in Active View Section by the settings, specified in Coloring Options dialog box, By Distance from Reference Plane tab, using Reference Plane, which is matches with current UCS Plane by default settings. If you want to change Reference Plane, use Change Plane command;
o Source – colors Point Cloud Object in Active View Section by RGB palette colors, which were specified in imported Point Cloud Data Files.
Specified colors (Red, Green, Blue, Custom color).
•
- Sets coloring to Logic Classes
in Active View Section. Active Coloring Option is displaying and can be changed
in Logic Classes in Active Section List. There are several Coloring
Options, that can be used for Logic Classes coloring:
o None – removes all coloring from Point Cloud Object in Active View Section. All points have the same color, specified in AutoCAD options;
o By Intensity – colors Point Cloud Object in Active View Section by the settings, specified in Coloring Options dialog box, By Intensity tab;
o By Z – colors Point Cloud Object in Active View Section by the settings, specified in Coloring Options dialog box, By Height (Z value) tab;
o Source – colors Point Cloud Object in Active View Section by RGB palette colors, which were specified in imported Point Cloud Data Files.
Specified colors (Red, Green, Blue, Custom color).
•
- Sets coloring to Point
Cloud Data Files in Active View Section. Active coloring option is displaying
and can be changed in Files in Active Section List. There are several
Coloring Options, that can be used for Data Files coloring:
o None – removes all coloring from Point Cloud Object in Active View Section. All points have the same color, specified in AutoCAD options;
o By Intensity – colors Point Cloud Object in Active View Section by the settings, specified in Coloring Options Dialog Box, By Intensity tab;
o By Z – colors Point Cloud Object in Active View Section by the settings, specified in Coloring Options dialog box, By Height (Z value) tab;
o Source – colors Point Cloud Object in Active View Section by RGB palette colors, which were specified in imported Point Cloud Data Files.
Specified colors (Red, Green, Blue, Custom color).
