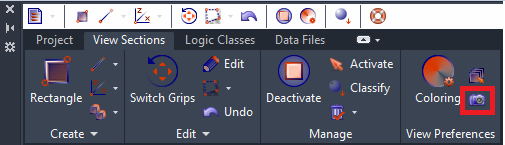

Generate Image - Converts
Active View Section to raster image co-planar to Screen Plane view.
Launches Image Preview Dialog Box, where you can set grid cell size in
square meters to define image precision and detail level. It is strongly
recommended to use 2D B&W Mode for digitalization of raster
images.

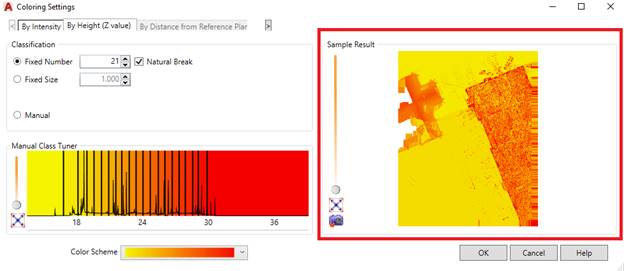

Here you can see preview effect of the changings, which you have made with Image Settings tool.
•
Zoom – Changes the
magnification of the view by zooming in and out.
•
Best Fit – Displays
the maximum extents of all visible objects.
•
Image Settings -
Sets grid cell size in square meters to define preview image precision and
detail level.
