With UNDET Data Files Tab you can manage imported Point Cloud Data Files, group or remove them from the List, export to LAS, PSG and ASCII formats, using Data Files Tab menu or directly in Data Files List.

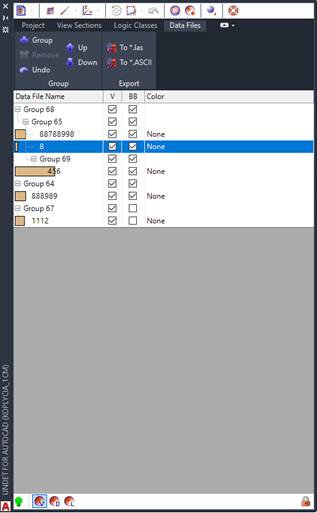

Data Files List shows and helps to manage all imported to UNDET Project Data Files.
Group Panel
|
|
|
|
|
|
|
Creates a new group or merges selected Data Files to new group. Use Shift or Ctrl buttons to select multiple Files and assign them into Group |
Removes selected Group from the List. Program removes only Group, but not Data Files, assigned to it. After deleting Group, Data Files remain in the List |
Moves up and changes selected record position inside the Group on the Data Files List |
Moves down and changes selected record position inside the Group on the Data Files List
|
Reverses last Group Panel command |
Export Panel
|
|
|
|
Creates a LAS file or multiple files with selected Data Files names |
Creates an ASCII type file or multiple files with selected Data Files names. Desired format can be specified in launches File Format Dialog Box
|
|
|
|
