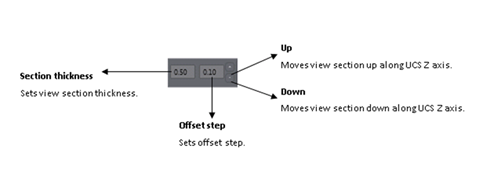

Smart Board dialog box will also appear after activating it. With the help of this dialog box you can create smart sections, manage their thickness, position and track UCS. If you would like to quit Smart Board, press close button (x) in the upper right corner of the dialog. You will come back to the primary position of point cloud, the same just before activating Smart Board.
•
- Creates cross section.
Section’s middle is defined by line.
•
- Creates cross section that is
perpendicular to the line. View section’s middle is defined by the first point
of the line. Drawing cross section line along the object will create object’s
profile at the first point of the line.
•
- Shows yours drafting
plane (cross section middle) as a grid which can be moved and rotated using
grips.
•
- Restores your UCS in the
drafting plane viewport and default WCS Front and Top viewports’
views.
