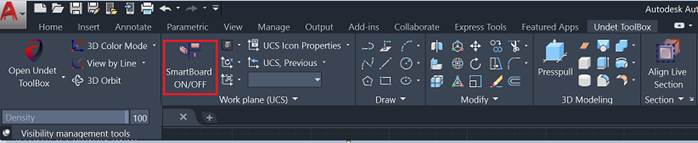

Smart Board ON/OFF
- You can create smart cross sections, move and rotate them. After
creating of cross section Smart Board will automatically set the UCS on defined
drafting plane so you will always draw in the correct place. After activating

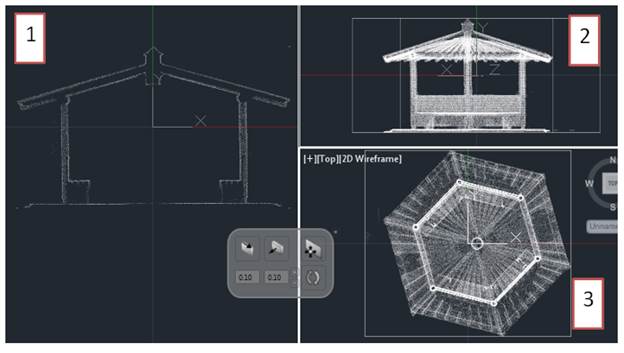

Smart Board your window will be divided in to 3 viewports.
|
1 |
Drafting plane viewport |
Shows point cloud cross section and hides any previously modeled features. Objects in this viewport should not be rotated because it is your drafting board. |
|
2 |
WCS Front viewport |
Shows point cloud and all features from the front view. |
|
3 |
WCS Top viewport |
Shows point cloud and all features from the top view. |
